Products

Metal panel systems, trim and custom sheet metal.

Mid-Ohio Metals manufactures the panel system and the custom trim needed to complete the job — roof panels, wall and soffit panels, trim, flashing and one-off architectural sheet-metal components, produced in Central Ohio.

Roof Panel Systems

Standing seam panels. Fabricated in-house.

Architectural standing-seam roof panels manufactured to project specifications in Central Ohio. Complete trim packages are available for each system and fabricated to the dimensions of the project.

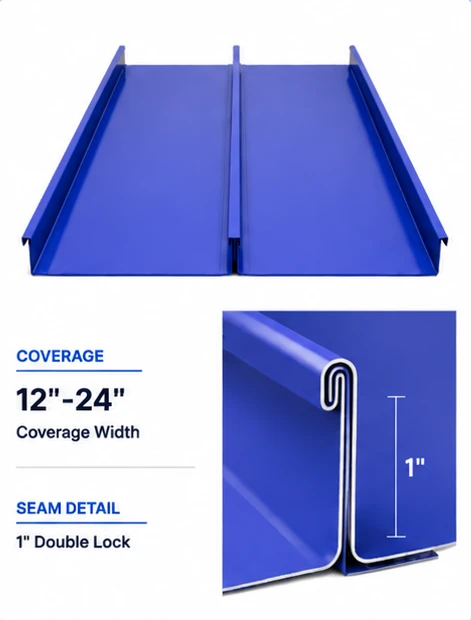

1" Double Lock Standing Seam

SS100

1" Double Lock mechanically seamed roof panel — 12"-24" coverage, 1" seam height

1" standing seam
Mechanically seamed / double-lock
Concealed clip attachment
Made to project specifications

View 1" Double Lock →

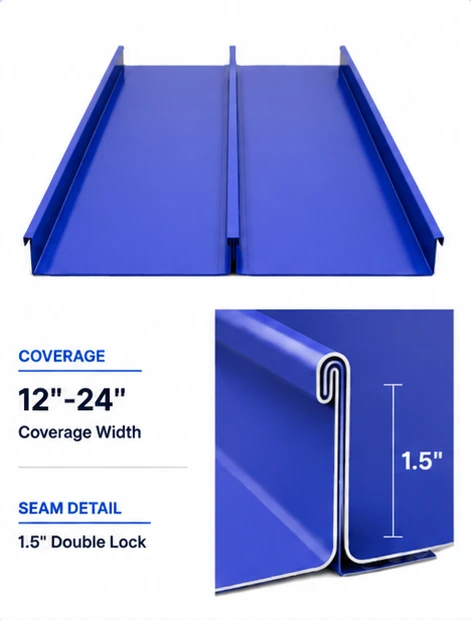

1.5" Double Lock Standing Seam

SS150

1.5" Double Lock mechanically seamed roof panel — 12"-24" coverage, 1.5" seam height

1.5" standing seam
Mechanically seamed / double-lock
Concealed clip attachment
Made to project specifications

View 1.5" Double Lock →

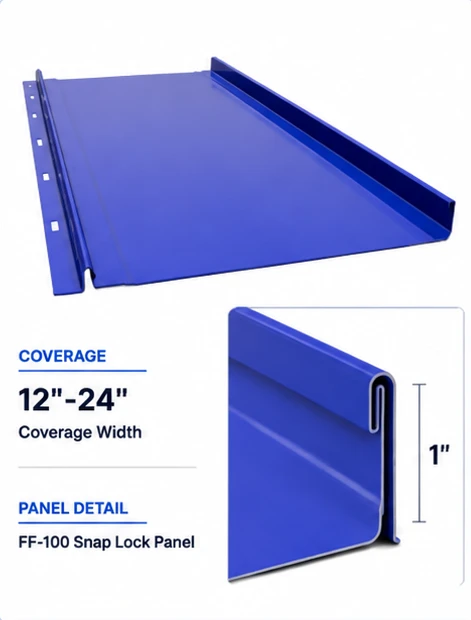

FF-100 — 1" Snap Lock

FF-100

Approximately 1" architectural standing seam profile
Snap-lock style panel connection
Concealed attachment
Made to project specifications

View FF-100 →

Each roof system can be supplied with the complete trim package, fabricated to the dimensions of the project.

Request Roof Panel + Trim →

Architectural Wall Systems

Metal wall systems fabricated to specification.

Wall and soffit panels manufactured to the material, finish and dimensions the project requires.

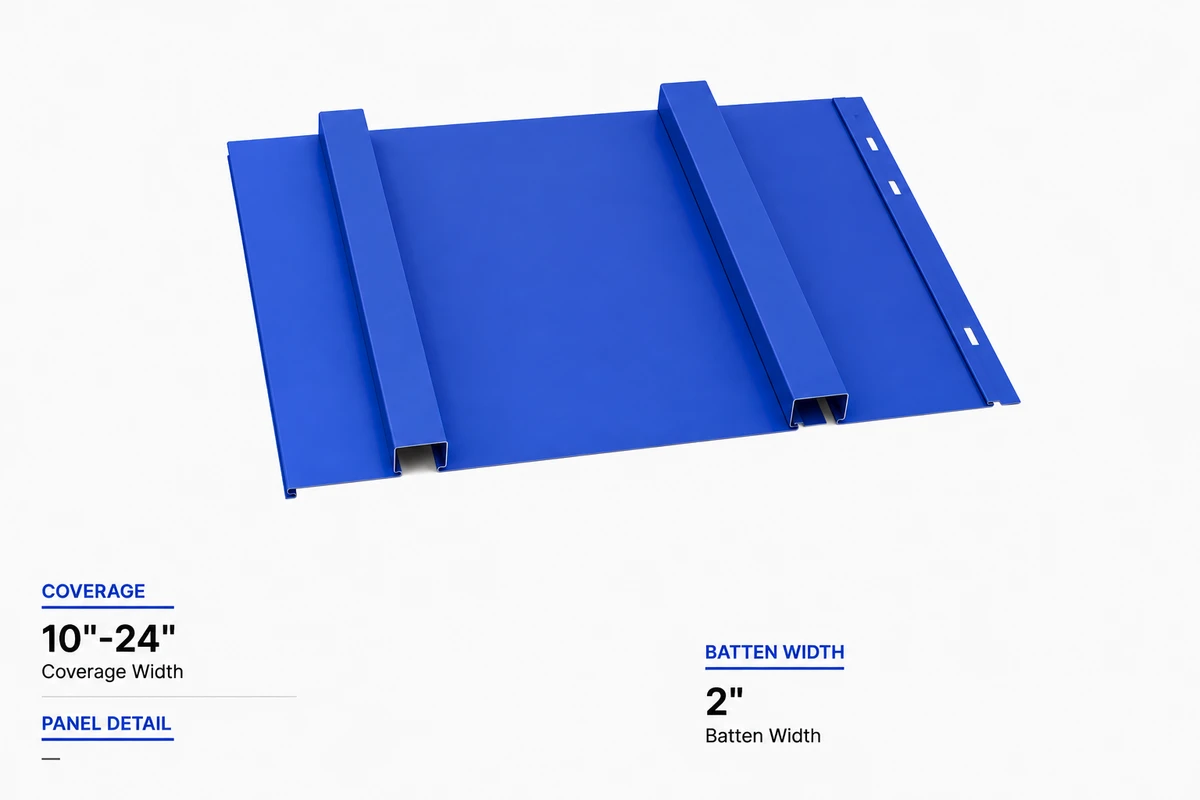

Board & Batten

Architectural metal wall panel with a pronounced batten-style vertical seam.

View System →

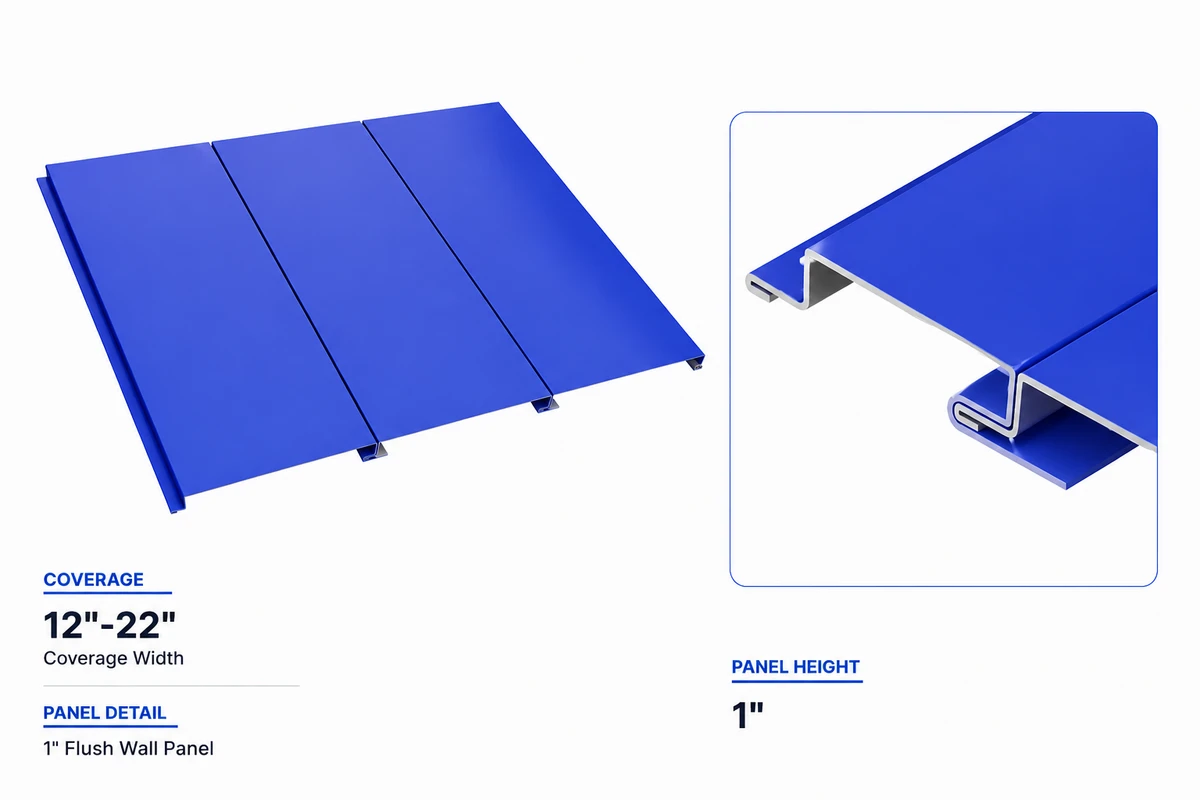

1" Flush Wall Panel — 12"-22" coverage, 1" panel height

Flush Panel

A clean architectural wall and soffit system with interlocking panel joints.

View System →

Complete Trim Packages

Panels are only part of the system.

Mid-Ohio Metals fabricates the trim and flashing required to complete your roof or wall system. Trim is made to order and produced to standard details or the custom dimensions of the project — not limited to predetermined stock sizes.

Roof

Eave trim
Rake / gable trim
Ridge Roll
Ridge
Hip
Valley
Headwall
Sidewall
Transition flashing
C-channel
Coping
Custom flashing

Wall

Outside corners
Inside corners
Rat guard
J-channel
Sill trim
Coping
Custom transitions

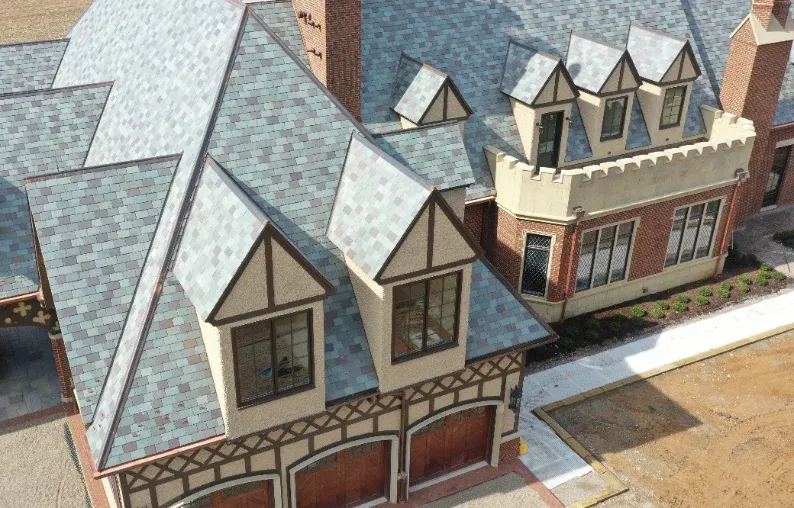

Slate roof with fabricated metal dormer trim and flashing

Request Custom Trim →

Custom Fabrication

Don’t see the profile you need?

Send us a drawing, sketch or dimensions and we’ll review the profile for custom fabrication.

Request Custom Fabrication →

Metal panel systems, trim and custom sheet metal.

Standing seam panels. Fabricated in-house.

Metal wall systems fabricated to specification.

Panels are only part of the system.

Don’t see the profile you need?

Have your measurements? Send us the specifications.
